What is R134a Refrigerant?

R134a is a colorless, odorless gas that is non-toxic and non-flammable under normal conditions. It’s part of a class of refrigerants known as HFCs, which were developed as safer, more environmentally friendly alternatives to older refrigerants like CFCs (chlorofluorocarbons). R134a was introduced in the 1990s and quickly became the go-to refrigerant for automotive air conditioning systems, as well as refrigeration and air conditioning units in residential and commercial applications.

R134a Refrigerant Overview

Physical Properties of R134a

Property Value
Chemical Formula C₂H₂F₄
Molecular Weight 102.03 g/mol
Boiling Point -26.3°C (-15.3°F)
Critical Temperature 101.1°C (213.98°F)
Critical Pressure 4.059 MPa (588.5 psi)
ODP (Ozone Depletion Potential) 0
GWP (Global Warming Potential) 1430 (100-year time horizon)
Density (liquid at 25°C) 1.207 g/cm³
Vapor Pressure 5.48 bar at 25°C (77°F)
Color Colorless
Odor Odorless
Flammability Non-flammable
Toxicity Non-toxic under normal conditions

How Does R134a Work in Cooling Systems?

The working principle of R134a is similar to other refrigerants. It undergoes a cycle of compression, condensation, expansion, and evaporation within a cooling system. Here's how the process works:

  • Compression: The refrigerant gas is compressed, raising its temperature and pressure.
  • Condensation: The hot, high-pressure gas then passes through a condenser, where it cools and turns into a liquid.
  • Expansion: The liquid refrigerant flows through an expansion valve, where it undergoes a drop in pressure, cooling rapidly.
  • Evaporation: The cooled refrigerant absorbs heat as it evaporates in the evaporator coil, lowering the temperature of the surrounding air or space.

Applications of Refrigerant R134a

R134a is incredibly versatile, finding applications in several industries. Some of its most common uses include:

Automotive Air Conditioning

R134a is the standard refrigerant in most modern vehicles' air conditioning systems. It offers a higher efficiency and better environmental profile compared to older refrigerants like R12. Its low toxicity and non-flammability make it a safer option for use in automotive systems.

Residential and Commercial HVAC Systems

R134a is widely used in air conditioning and refrigeration systems, both in homes and businesses. Its stability, efficiency, and eco-friendly properties make it a top choice for maintaining indoor comfort in various environments.

Refrigerators and Freezers

R134a is also used in household refrigerators and freezers, where it helps maintain the low temperatures needed to preserve food and other perishable items.

Why Choose FOTECH’s R134a Refrigerant?

FOTECH provides high-quality R134a refrigerants that meet the highest industry standards. Our refrigerants are designed for optimal performance in both automotive and HVAC applications. Whether you’re looking to upgrade your cooling systems or replace old refrigerants, FOTECH’s R134a ensures reliability, efficiency, and eco-friendly compliance with global regulations.

Quality and Compliance

FOTECH’s R134a refrigerant complies with all global environmental and safety standards. We ensure our products are free from contaminants and are designed for maximum efficiency, which not only optimizes performance but also reduces long-term maintenance costs.

Competitive Pricing and Excellent Service

At FOTECH, we understand the importance of providing cost-effective solutions without compromising quality. Our competitive pricing structure, coupled with exceptional customer support, makes us the preferred choice for businesses and individuals seeking reliable refrigerant products.

Conclusion

R134a remains a popular and effective refrigerant in numerous cooling applications. Understanding how it works and its benefits is crucial for maintaining efficient systems. With FOTECH’s high-quality R134a refrigerant, you can ensure optimal performance and longevity for your automotive, HVAC, and refrigeration systems.

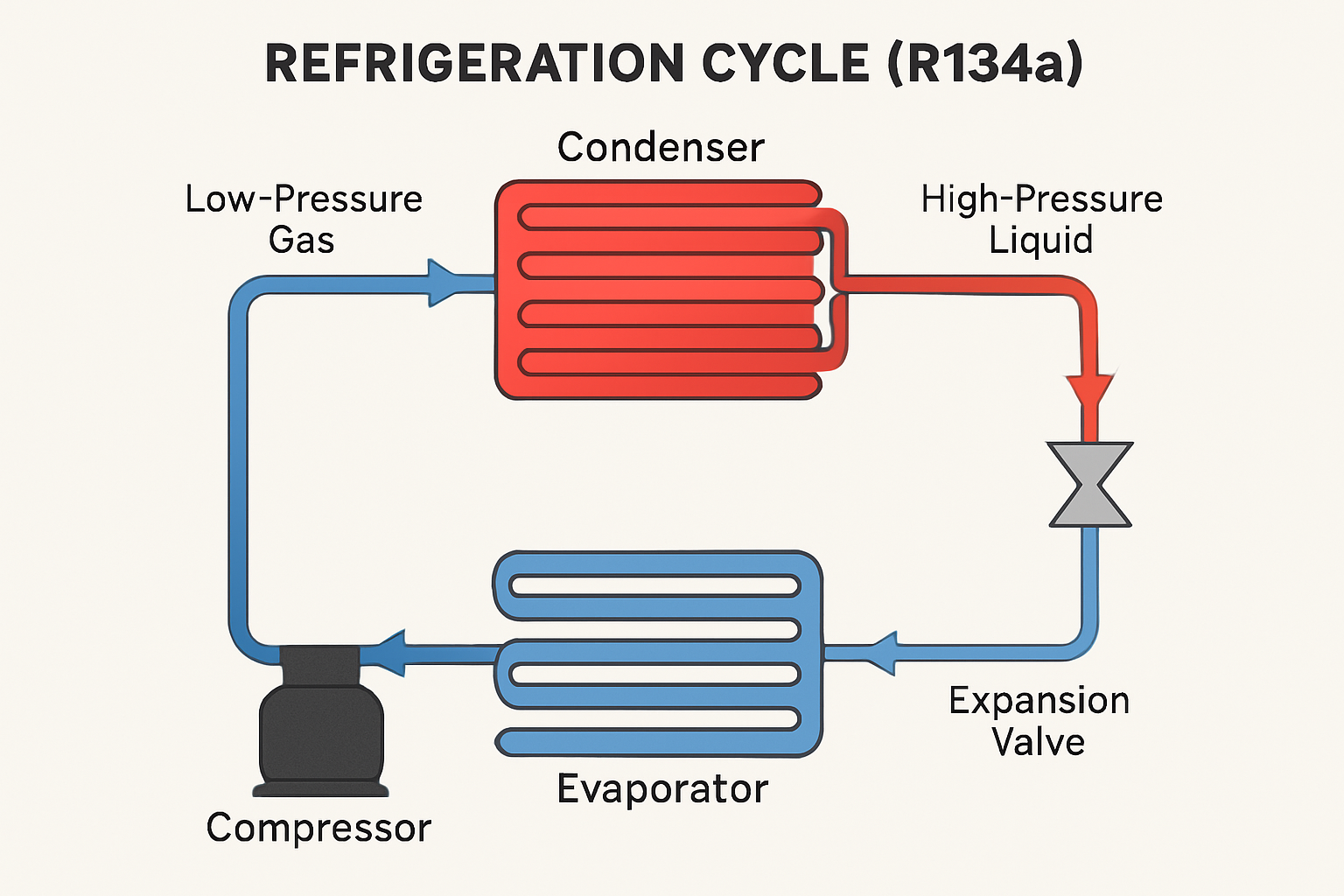

R134a Refrigerant Diagram
