Refrigerant R410a
Refrigerant R410a

Review

Description

What is R410A Refrigerant?

R410A is a refrigerant mixture consisting of two components: R32 (Difluoromethane) and R125 (Pentafluoroethane). It was developed as a replacement for older refrigerants like R22, which have higher ozone depletion potential. R410A is an HFC (Hydrofluorocarbon) blend and is used in various air conditioning and refrigeration applications. It is particularly well-suited for modern cooling systems that require higher pressures and greater energy efficiency.

R410A Refrigerant Overview

Physical Properties of R410A

Property Value
Chemical Formula R32 + R125
Molecular Weight 72.58 g/mol
Boiling Point -51.5°C (-60.7°F)
Critical Temperature 72.5°C (162.5°F)
Critical Pressure 4.59 MPa (667 psi)
ODP (Ozone Depletion Potential) 0
GWP (Global Warming Potential) 2088 (100-year time horizon)
Density (liquid at 25°C) 1.060 g/cm³
Vapor Pressure 5.2 bar at 25°C (77°F)
Color Colorless
Odor Odorless
Flammability Non-flammable
Toxicity Non-toxic under normal conditions

How Does R410A Work in Cooling Systems?

R410A refrigerant operates on the same principle as other refrigerants. It undergoes a cycle of compression, condensation, expansion, and evaporation within an HVAC or refrigeration system. Here’s how it works:

  • Compression: The refrigerant gas is compressed, which raises its pressure and temperature.
  • Condensation: The hot, high-pressure gas passes through a condenser, where it cools and condenses into a liquid.
  • Expansion: The liquid refrigerant then flows through an expansion valve, where it undergoes a pressure drop and cools rapidly.
  • Evaporation: The cooled refrigerant absorbs heat as it evaporates in the evaporator, lowering the surrounding temperature.

Applications of Refrigerant R410A

R410A is widely used in air conditioning and refrigeration systems, particularly in systems that require higher efficiency and better environmental performance. Some common applications include:

Residential and Commercial HVAC Systems

R410A is used in residential and commercial air conditioning systems. It has a higher pressure and better heat transfer capabilities than R22, making it more efficient for modern air conditioners and heat pumps.

Refrigeration Units

R410A is also commonly used in refrigeration systems, including those in supermarkets and other commercial refrigeration units. It offers better efficiency compared to older refrigerants like R22.

Why Choose FOTECH’s R410A Refrigerant?

FOTECH’s R410A refrigerant offers several key benefits for both residential and commercial systems. With our high-quality R410A refrigerants, you can improve the energy efficiency and performance of your cooling systems while also reducing your environmental footprint. Whether you’re retrofitting old systems or designing new installations, FOTECH’s R410A refrigerants are the ideal choice for maintaining optimal performance.

Quality Assurance and Compliance

Our R410A refrigerants are produced to the highest standards and comply with all relevant environmental and safety regulations. You can trust that our products are reliable and offer the best efficiency for your systems.

Competitive Pricing and Exceptional Service

At FOTECH, we are committed to providing competitive pricing without compromising on quality. With our exceptional customer service and technical support, we ensure that you get the best value for your refrigerant needs.

Conclusion

R410A is a powerful and efficient refrigerant that has become the standard in many cooling and refrigeration applications. Choosing FOTECH’s R410A refrigerant means you are investing in superior quality, efficiency, and performance for your HVAC and refrigeration systems.

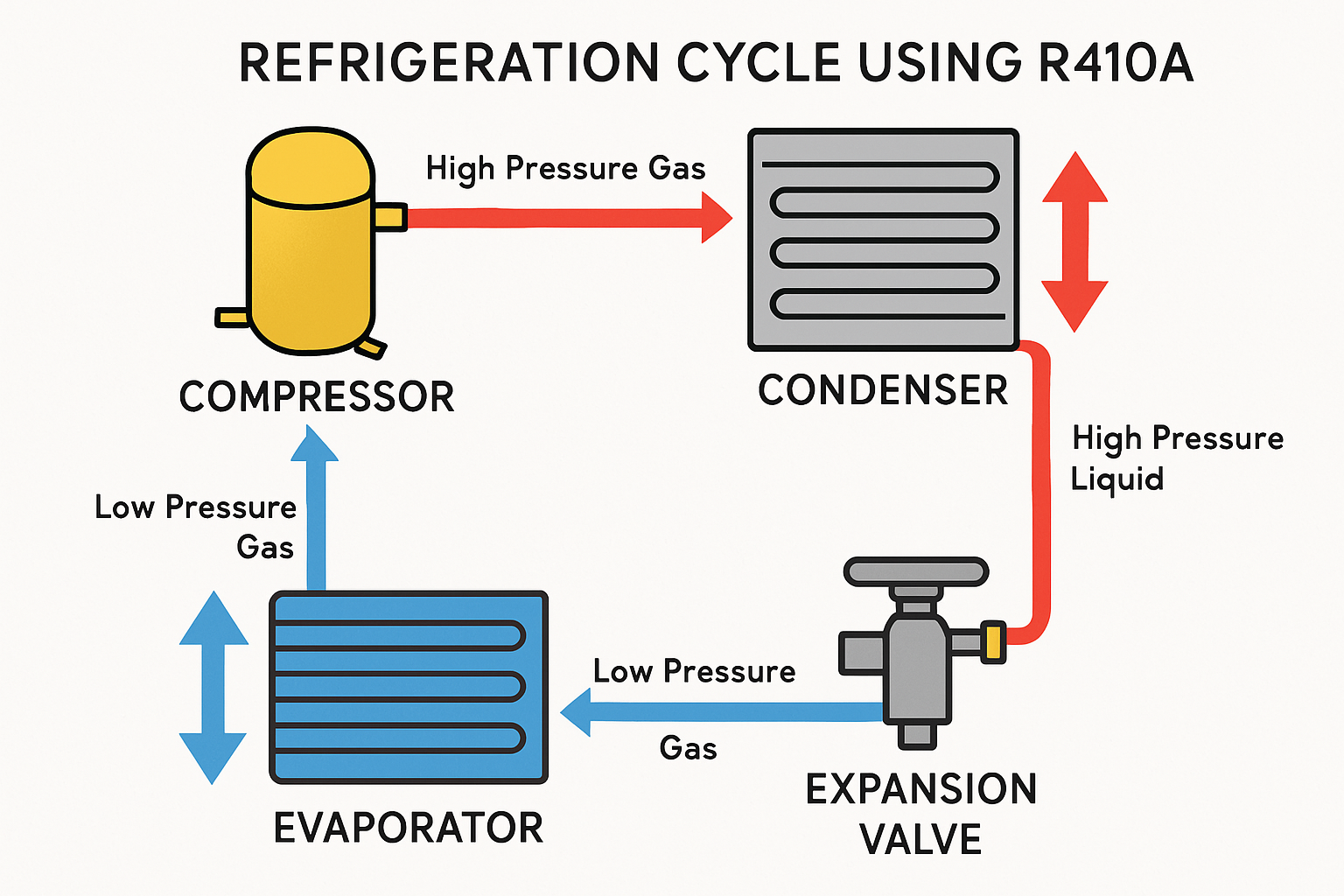

R410A Refrigerant Diagram
